UHF-RFID Solution

UHF-RFID Microwave absorber Panel

UHF Absorber and shield materials can diminish null points due to phasing of multi-pass and refrain from ghost reading UHF-RF tag.
We investigate RF environment at site, and offer suitable solution according to the site.

  • ADAS
  • 5G
  • UHF-RFID
  • ETC
  • Wi-Fi/BLE
  • Out doors
  • Anechoic Chamber

Specification

Product nameUHF Broad band absorber panelUHF-RFID Microwave absorber Panel
Material numberMS-F050KMS-F050MS-009KMS-009T
FeaturesBroad band It absorbs UHF microwave at grazing incidenceBroad band , Non-flammability
It absorbs UHF microwave at grazing incidence
920MHz
Thin
920MHz
Thin and transparent
Applied frequency800MHz~110GHz920MHz920MHz
Standard thickness50mm50mm10mm5mm
Standard size800*800mm900*1800mm900*1800mm1000*1000mm
Operation temperature-30°C~85°C
MatrialsPolyethylene foam
with Dielectric Material
Calcium Carbonate Foam with Dielectric MaterialPolystyreneAcrylic
Weight3.7kg7.4kg5kg6kg

Absorb performance

  • Abosord performance(MS-009T)

UHF-RFID Solution

UHF shield Mesh

It can diminish null points due to phasing of multi-pass, and refrain from ghost reading UHF-RF tag.
It is applicable to limit UHF RF communication in a factory.
We can provide transparent mesh tent and various shape.

  • ADAS
  • 5G
  • UHF-RFID
  • ETC
  • Wi-Fi/BLE
  • Out doors
  • Anechoic Chamber

Specification

Product nameUHF-RFID shield Mesh
Material numberMS-PXF
FeaturesEasy to work with.
Applied frequency800MHz~1GHz
Standard thickness0.2mm
Standard size1000mm*2M(Minimum) Sell in Meter units
Operation temperature-30°C~85°C
MatrialsPolyester cloth with conductive plating

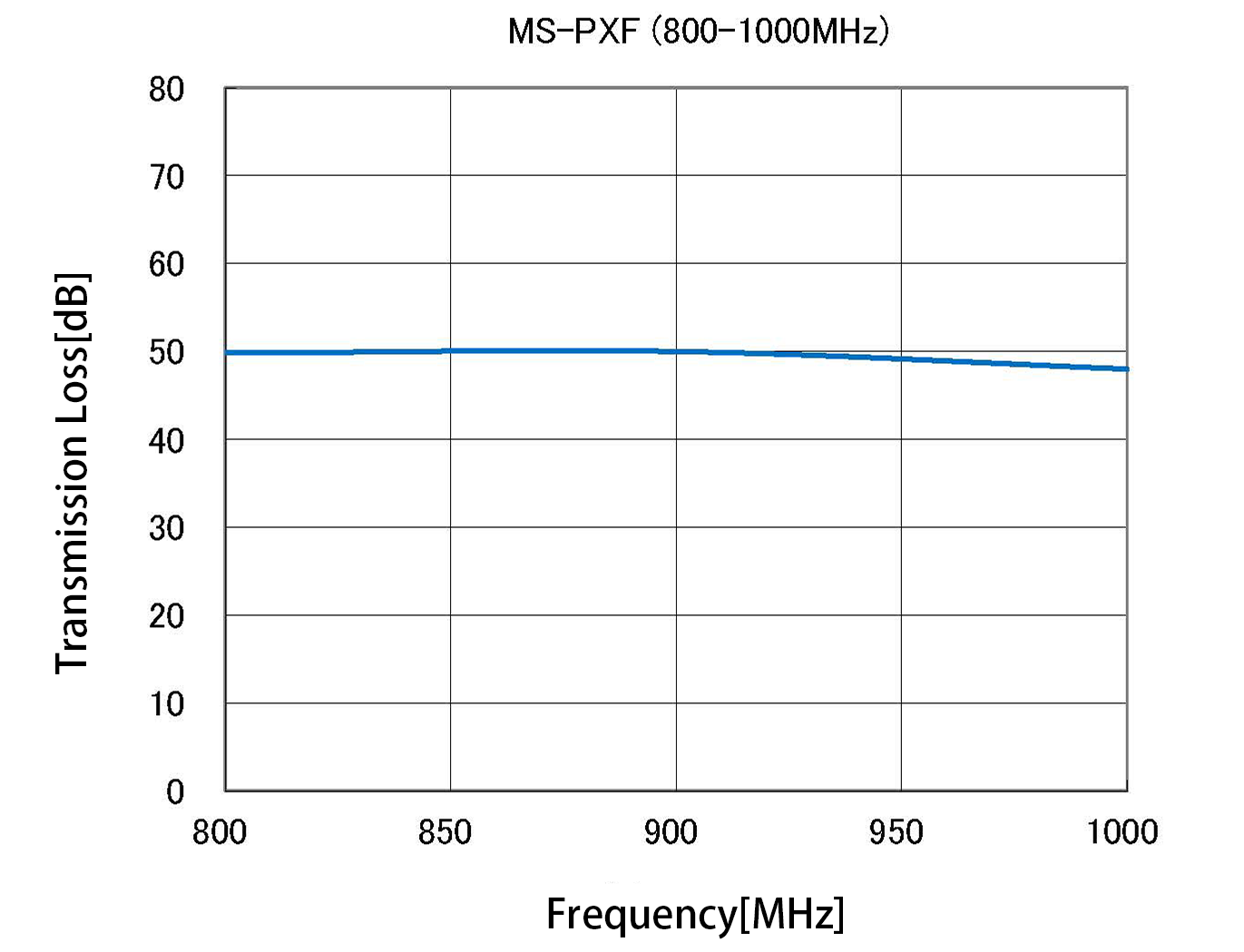

Shield performance

  • UHF-RFID shield Mesh(MS-PXF)

UHF-RFID Solution

RF shield transparent Film

It can diminish null points due to phasing of multi-pass and refrain from ghost reading UHF-RF tag.
It is easy to look inside. Adhesive as request

  • ADAS
  • 5G
  • UHF-RFID
  • ETC
  • Wi-Fi/BLE
  • Out doors
  • Anechoic Chamber

Specification

Product nameRF shield transparent Film
Material numberMS-PWT
FeaturesWith adhesive
Applied frequency300MHz~10GHz
Standard thickness0.15mm
Standard size1200mm×1M(Minimum) Sell in Meter units
Operation Temperature-30°C~85°C
MatrialsPET base film + conductive layer + Adhesive layer
Translucency70%

Shield performance

Experiences

  • Belt-conveyer in a factory

    Shield mesh can refrain from error reading (Ghost reading) UHF-RF tag in the next lane.

  • Stockyard

    Absorber panel can diminish null points due to phasing of multi-pass

  • Belt-conveyer in a factory

    Absorber panel can diminish null points due to phasing of multi-pass

  • Factory

    Beam foamiy uni increases the beam direction of RF.

  • Factory

    Transparent absorber is applicable to limit UHF RF communication area in a factory.
